Product Details:
Payment & Shipping Terms:
|
Screw Type: | Self Drilling Screw / Tek Screw | Material Grade: | SUS 304, 18-8, 410, 316 |
---|---|---|---|
Finish: | Plain Or Passivated | Size: | #6 ~1/4", 3.5~6.3mm |
Length: | 1/4" ~ 10", 6.5 ~ 250mm | Standard: | DIN, IFI, ANSI, JIS |
Point Type: | #2, #3, #4, #5, #6, #7 Tek Point |

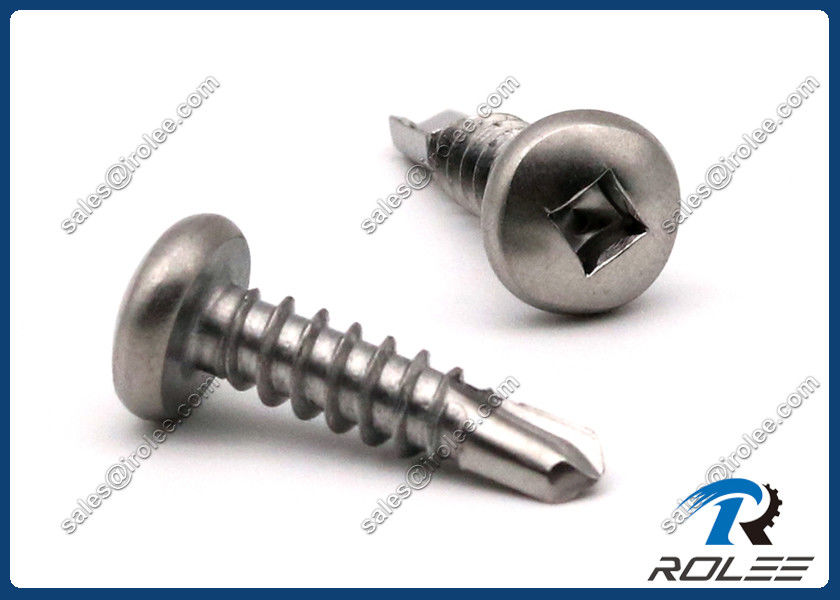

304/316/410 Stainless Steel Robertson Square Pan Head Self Drilling Tek Screw
Pan heads are slightly rounded with short vertical sides. Square drive, also called Robertson drive, is designed to reduce the risk of cam-out.
The self-drilling screws are made of stainless steel and have a sheet metal thread with a self-drilling cutting point to pierce through metal steel, aluminium, wood etc., including structural steel.
The higher the TEK number the larger the drilling point to pierce heavier gauge metals. Different stainless mode for different applications.
Specification
Type | Self Drilling Screw / Tek Screw |
Grade | SUS304, 316(marine grade), 410(hardend), 18-8 |
Finish | Plain or Passivated |
Head Type | Pan Head |
Drive Type | Square/Robertson |
Diameter | #6 ~ 1/4", 3.5 ~ 6.3mm |
Length | 1/4" ~ 10", 6.5 ~ 250mm |
Standard | DIN, ANSI, JIS, GB |
Stock | Unavailable |
Contact
If you're insterested in our stainless steel Robertson square pan head self drilling tek screw, please do not hesitate to send us an email (sales@irolee.com) or call us at +8615867456779(Mob/Whatspp/Skype)directly.
For stock, we suggest you double check from us before placing order, thank you!
