|Fastener Type:||Self Drilling Screw / Tek Screw||Material Grade:||SUS304, 18-8, 410, 316|
|Finish:||Plain||Size:||#6 ~1/4", 3.5~6.3mm|
|Length:||1/4" ~ 10", 6.5 ~ 250mm||Standard:||DIN, IFI, ANSI, JIS|
|Head Type:||Flat / Coutersunk(CSK) Head||Drive Type:||Allen / Hex Socket|
|Point:||#2 ~ #7 Tek Point|

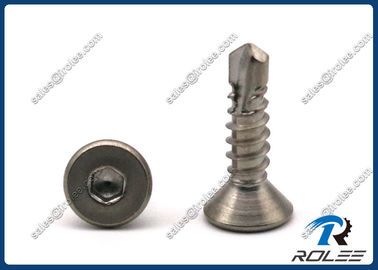

304/316/410 Stainless Steel Flat Head Hex Socket Self-drilling Tek Screw
Self drilling screws have a drilling tek point. Flat heads are countersunk (cone shaped under the head) with a flat top. Allen (hex socket) drive is a six-sided recess for use with an allen wrench (hex key).
These self-drilling screws are made of stainless steel and have a sheet metal thread with a self-drilling cutting point to pierce through metal steel, aluminium, wood etc., including structural steel.
The higher the TEK number the larger the drilling point to pierce heavier gauge metals. Different stainless mode for different applications.
|Type||Self Drilling Screw / Tek Screw|
|Grade||SUS304, 316(marine grade), 410(hardend), 18-8|
|Finish||Plain or Passivated|
|Head Type||Flat / Countersunk Head|
|Drive Type||Allen/Hex Socket|
|Thread Type||Type AB|
|Diameter||#6 ~ 1/4", 3.5 ~ 6.3mm|
|Length||1/4" ~ 10", 6.5 ~ 250mm|
|Standard||DIN, ANSI, JIS, GB|
If you're insterested in our stainless steel hex socket flat head self-drilling sheet metal screw, please do not hesitate to send us an email(firstname.lastname@example.org) or call us at +8615867456779(Mob/Whatsapp/Skype) directly.
For stock, we suggest you double check from us before placing order, thank you!
