304/316/410 Stainless Steel Torx Round Washer Head PT Thread Tapping Screws
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Self Tapping Screw / Plastite Screw | Grade: | Stainless Steel 304, 316, 18-8 |
|---|---|---|---|
| Standard: | WN1451 | Size: | K14~K60 |
| Length: | 3~50mm | Head Type: | Round Washer |
| Drive Type: | Torx |

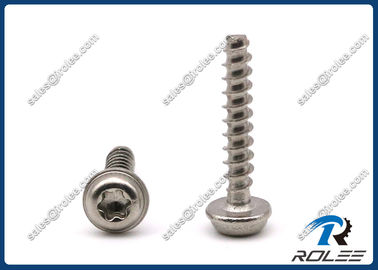

304/18-8 Stainless Steel Torx Round Washer Head PT Thread Screw
The PT thread screw features a compound geometry of the flank angle of the thread. Improvements include better deformation of the plastic material during the fastening process, increased service life of the joint both in case of static and dynamic stress. Up to 50% improved torsional and tensile strength for the same diameter fastener. The optimized pitch provides a higher clamp load at low contact pressure by increased flank engagement.
Star drive is torx compatible, designed to reduce the risk of cam-out.
Specification
| Grade | SUS304, 316, 410, A2 |
| Finish | Plain or Passivated |
| Head Type | Round Washer Head |
| Drive Type | Torx/Star Drive |
| Diameter | K14 ~ K60mm |
| Length | 3mm ~ 50mm |
| Standard | JIS, DIN, ANSI, IFI |
| Stock | Unavailable |
Contact
If you're insterested in our stainless steel torx drive PT thread screw, please do not hesitate to send us email or call us at +8615867456779(Mobile) directly.
For stock, we suggest you double check from us before placing order, thank you!
