Type: | Self Tapping Screw / Plastite Screw | Grade: | Stainless Steel 304, 316, 18-8 |
---|---|---|---|
Standard: | DIN, JIS, ANSI | Size: | #2 ~ #10, 2.2 ~ 6.3mm |
Length: | 5/32" ~ 4", 4mm ~ 100mm | Head Type: | Flat / Countersunk |
Drive Type: | Pozi | Thread Type: | "B" |

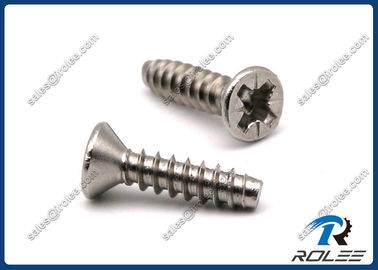

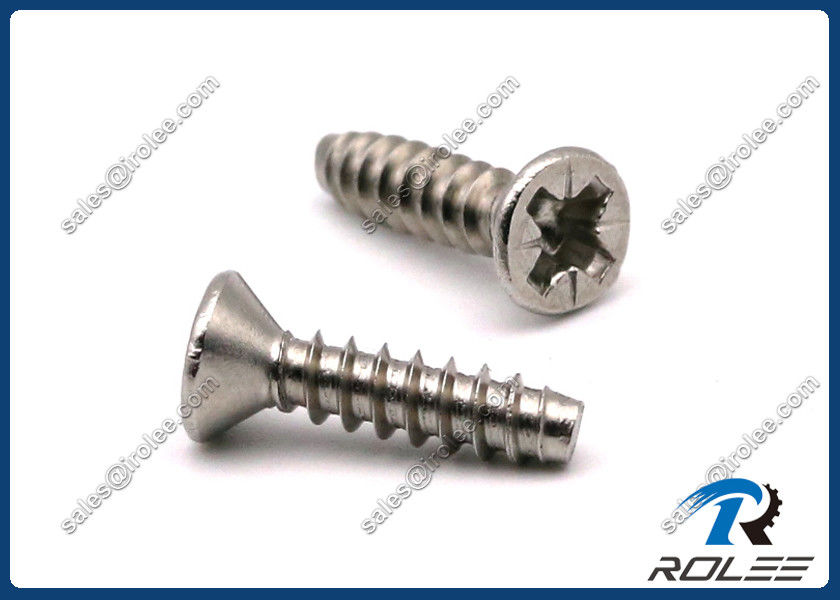

Stainless Steel Flat Head Pozi Tapping Screws for Plastics
The blunt screws are often refered to as Type "B" thread-forming screws, they require a drilled hole and are typically used in 0.050"-0.200" material. Flat heads are countersunk (cone shaped under the head) with a flat top.
The Pozi-drive was invented to further improve on the torque and cam-out of the Phillips head.
Note: A Phillips Driver will fit into a Pozi screw head but a Pozi driver will not fit into the Phillips screw head, it is not recommended to use a Phillips driver with a Pozi screw as it will eventually round off the recess of the head causing damage to the screw and making it unusable.
Specification
Grade | SUS304/18-8/A2, SUS316/A4 |
Finish | Plain or Passivated |
Head Type | Flat/Counterunk Head |
Drive Type | Pozi Drive |
Point Type | Blunt Point |
Thread Type | "B" |
Diameter | #2 ~ #10, 2.2 ~ 4.8mm |
Length | 5/32" ~ 4", 4mm ~ 100mm |
Standard | JIS, DIN, ANSI, IFI |
Stock | Unavailable |
Contact
If you're insterested in our stainless steel pozi flat head blunt screw, please do not hesitate to send us email or call us at +8615867456779(Mobile) directly.
For stock, we suggest you double check from us before placing order, thank you!
