|Screw Type:||Self Drilling Screw / Tek Screw||Material Grade:||SS410, Case Hardened|
|Finish:||Plain Or Passivated||Size:||#12, 1/4", 5.5mm, 6.3mm|
|Length:||1-1/4" ~ 10", 32~250mm||Standard:||DIN, IFI, ANSI, JIS|
|Point Type:||#5, #6, #7 Tek Point||Head Type:||Hex Washer|

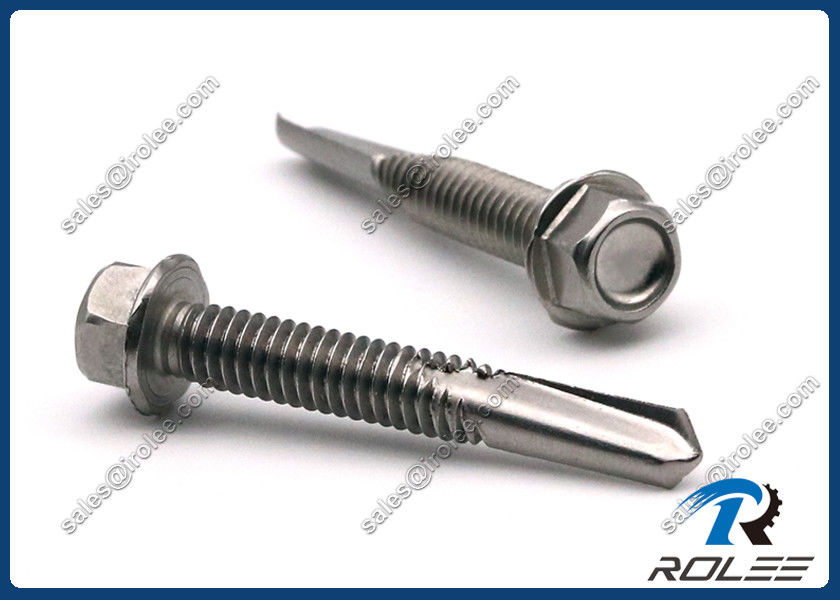

410 Stainless Steel Heavy Duty Self Drilling Screw, Tek 5 Point, Hex Washer Head
Hex washer head self drilling screws are made of 410 Stainless Steel and have a sheet metal thread with a self-drilling cutting point to pierce through harder metals, including structural steel. The higher the TEK number the larger the drilling point to pierce heavier gauge metals. #6 and #7 are also can be customized.
410 Stainless Steel is harder than standard 18-8 Stainless and when combined with the drill point of these screws makes them ideal for use on sheet metal, metal studs or structural steel.
Hex Head Self Drilling Sheet Metal Screws are installed with a wrench or hex nut setter.
|Type||Self-drilling Screw /Tek Screw|
|Grade||SUS 410, Martensite, Hardened|
|Head Type||Hex Waher Head|
|Drive Type||Exterior Hex|
|Point Type||#5, #6, #7 Tek Point|
|Diameter||#12, 1/4", 5.5mm, 6.3mm|
|Length||1-1/4" ~ 10", 32~250mm|
|Standard||DIN, ANSI, JIS, IFI|
If you're insterested in our stainless steel 410 hex washer head self drilling tek screw for heavy duty structure steel , please do not hesitate to send us email or call us at +8615867456779(Mobile) directly.
For stock, we suggest you double check from us before placing order, thank you!
