|Screw Type:||SEMS Screw / Plastite Screw||Grade:||Stainless Steel A2, 304,18-8|
|Head Type:||Pan||Drive Type:||Philips|
|Size:||M2 ~ M6, #2 ~ #14||Length:||4 ~ 50mm, 5/32~ 2"|
|Standard:||DIN, GB, ANSI, JIS||Washer Type:||Double, Flat + Spring|
|Thread Type:||Trilobular(P-tite, B-tite)|

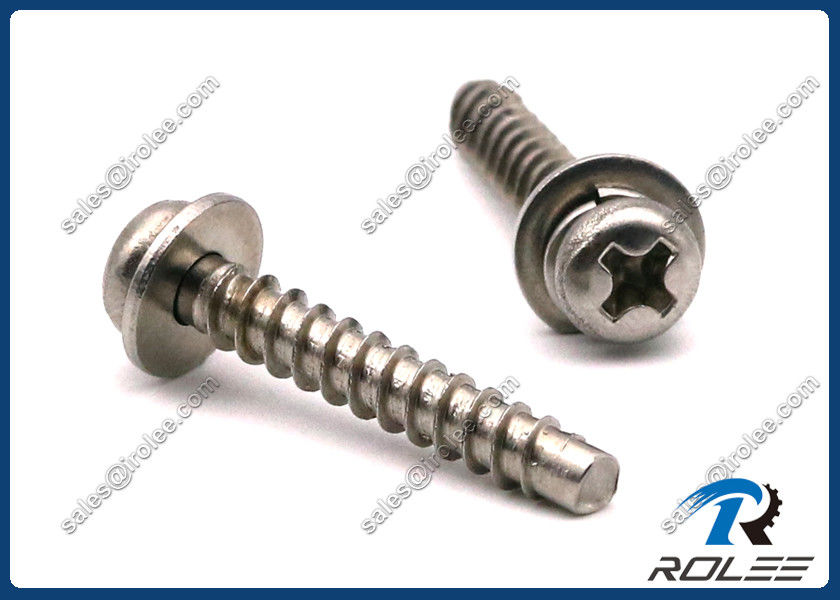

Stainless Steel Philips Pan Trilobular Thread-forming Plastite Screws, SS 304 /18-8
SEMS screws are also called combination screws, which are assemblies of screw bolt with washers. The screw is assembled with a screw and a flat washer + spring washer.
Those serial screws are used in the areas of electronic products, chemical industry, mechanical equipment, furniture, etc.
Trilobular-formed thread generates strong mating threads, resists vibration loosening, reduces probability of strip-out and pull-out, and increases holding power.
|Type||SEMS Screw / Plastite Screw|
|Head Type||Pan Head|
|Drive Type||Philips Drive|
|Diameter||M2 ~ M6, #2 ~ #14|
|Length||4 ~ 50mm, 5/32~ 2"|
|Standard||DIN, ANSI, GB, JIS|
If you're insterested in our stainless steel philips pan trilobular thread-forming plastite screw, please do not hesitate to send us an email or call us at +8615867456779(Mobile)directly.
For stock, we suggest you double check from us before placing order, thank you!
