Product Details:
Payment & Shipping Terms:
|
Type: | Self Drilling Screw / Roofing Screw | Material: | Stainless Steel 410(Martensite), Hardened |
---|---|---|---|
Finish: | Passivated | Head Type: | Hex Washer |
Thread Type: | "B" | Point Type: | #2 ~ #7 Tek Point |
Washer Type: | Metal Bonded EPDM Washer | Standard: | DIN, ANSI |

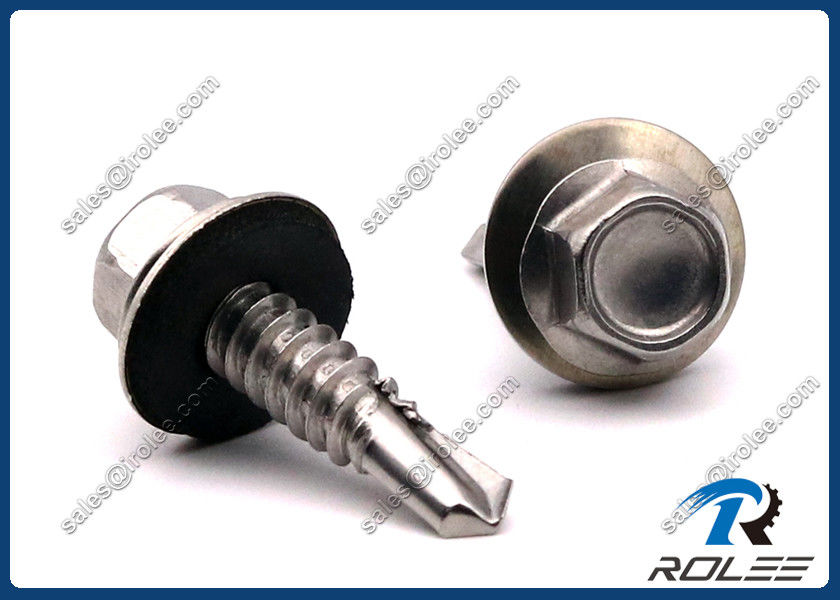

410 Stainless Hex Washer Head Self-drilling Roofing Screw w/ EPDM Sealing Washer
The hex washer head self-drilling screws are made of stainless steel 410 and have a sheet metal thread with a self-drilling cutting point to pierce through metal steel, aluminium, wood etc., including structural steel. Stainless Steel 410, as general Martensitic steel, is harder than stainless 18-8/304 or 316 after being hardened, very ideal choice for metal sheet, structure steel etc.
The higher the TEK number the larger the drilling point to pierce heavier gauge metals. Different stainless mode for different applications.
Hex head self drilling sheet metal screws are installed with a wrench or hex nut setter. A rubber-bonded washer compresses to form a watertight seal.
Specification
Type | Self-drilling Screw /Tek Screw / Roof Screw |
Grade | SUS410 (Martensite Steel |
Head Type | Hex Waher Head |
Drive Type | Exterior Hex |
Thread Type | "B" |
Point Type | #3 ~ #7 Tek Point |
Diameter | #8 ~ 1/4", 4.2 ~ 6.3mm |
Length | 1/2" ~ 10", 13~ 250mm |
Standard | DIN, ANSI, JIS, IFI |
Stock | Unavailable(Some size) |
Contact
If you're insterested in our stainless steel 410 hex washer head self-drilling roofing screw with bonded EPDM washer, please do not hesitate to send us an email or call us at +8615867456779(Mobile)directly.
For stock, we suggest you double check from us before placing order, thank you!
