|Screw Type:||Self Drilling Screw / Tek Screw||Material Grade:||SUS304, 18-8, 410, 316|
|Finish:||Plain||Size:||#6 ~1/4", 3.5~6.3mm|
|Length:||1/4" ~ 10", 6.5 ~ 250mm||Standard:||DIN, IFI, ANSI, JIS|
|Point Type:||#2, #3, #4, #5, #6, #7 Tek Point|

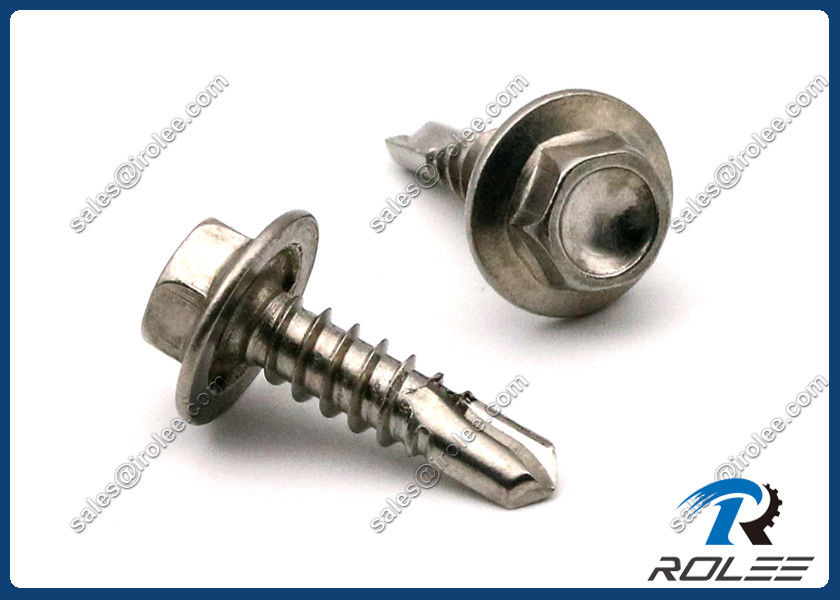

304/316/410 Stainless Steel Hex Flange Head Self-drilling Metal Screw
The hex flange head self-drilling metal screws are made of stainless steel and have a sheet metal thread with a self-drilling cutting point to pierce through metal steel, aluminium, wood etc., including structural steel.
The higher the TEK number the larger the drilling point to pierce heavier gauge metals. Different stainless mode for different applications.
Hex head self drilling sheet metal screws are installed with a wrench or hex nut setter.
|Type||Self-drilling Screw /Tek Screw|
|Grade||SUS304, 18-8, SUS316(Marine Grade), SUS410(Martensite)|
|Head Type||Hex Flange Head|
|Drive Type||Exterior Hex|
|Point Type||#2, #3, #4, #5, #6, #7 Tek Point|
|Diameter||#6 ~ 1/4", 3.5 ~ 6.3mm|
|Length||1/4" ~ 10", 6.5 ~ 250mm|
|Standard||DIN, ANSI, JIS, IFI|
If you're insterested in our stainless steel hex flange head self-drilling metal screw, please do not hesitate to send us an email or call us at +8615867456779(Mob/Whatsapp/Skype) directly.
For stock, we suggest you double check from us before placing order, thank you!
