304/316/410 Stainless Torx Pan Trilobular Thread Forming Taptite Screws Type CA
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Thread Forming Screw / Taptite Screw | Grade: | Stainless Steel 304, 316, 18-8, 410 |
|---|---|---|---|
| Finish: | Plain Or Passivated | Head Type: | Pan |
| Drive Type: | Torx / Star / 6-lobe | Thread Type: | Thrilobular," CA" |
| Standard: | JIS, ANSI | Size: | M2 ~ M6, #2 ~ 1/4" |
| Length: | 4 ~ 100mm, 5/32 ~4" |

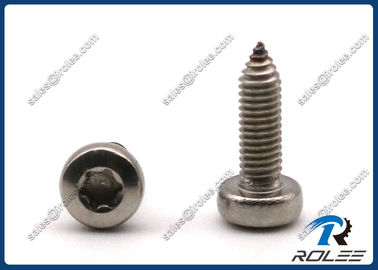

410/304/316 Stainless Steel Trilobular Thread Forming Taptite Screw Type "CA"
These screws have a trilobular shank that presses tightly as it forms threads, so screws resist loosening in soft metals such as brass, aluminum, and copper. Also known as Taptite screws, they have a Torx drive that allows you to apply extra force with less slipor damage to the recess.
Specification
| Type | Thread Forming Screw/Taptite Screw |
| Grade | SUS304, SUS316, SUS410(hardened) |
| Head Type | Pan Head |
| Drive Type | Torx/Star |
| Thread Type | Trilobular, "CA" |
| Size | M2 ~ M6, #2 ~ 1/4" |
| Length | 4 ~ 100mm, 5/32 ~4" |
| Standard | DIN, GB, ANSI, JIS |
| Stock | Unavailable |
Contact
If you're insterested in our stainless steel torx drive pan head type CA taptite screw, please do not hesitate to send us email or call us at +8615867456779 (Mobile)directly.
For stock, we suggest you double check from us before placing order, thank you!
